Aqua AHF 308 (Triplex pump)
- Pressure to 1000 bar and flows up to 330 lpm
- Unrivalled reliability and low running costs
- Simple design with easy maintenance
- Integral reduction gearbox with 4 ratios available
- High capacity rolling element main bearings for high rod loads
Description

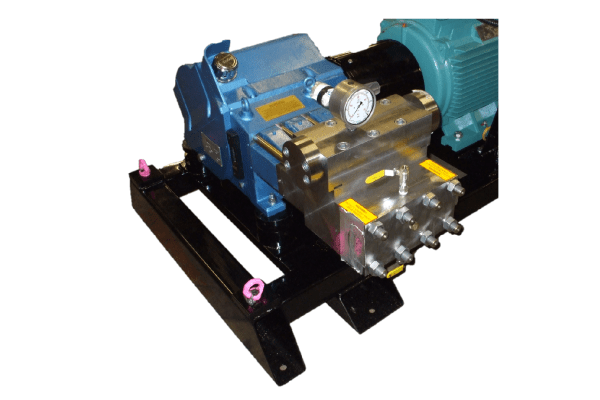

The Aqua AHF308 triplex plunger pump is a high pressure direct acting pump capable of pressures up to 1000 bar (15,000 psi) and flows to 330 l/min (73 gpm). It is available with 16 plunger sizes and 4 gearbox ratios providing numerous pressure and flow combinations to suit all applications. The AHF308 has one of the highest rod loads in the industry.
Drive power can be diesel or electric and the gearbox is integral to the crankcase making the design extremely compact. We have several gearbox ratios available to suit different input speeds.
The fluid head is designed so that no special tools are required for servicing and plunger changes can be completed in minimal time. The AHF308 is a truly robust and efficient plunger pump.
- Simple servicing
- Integral gearbox
- API 674 & ASME III, Div 1 (options available)
- Large main roller bearings allow high plunger loads
- Simple splash lubrication system for all moving parts
- 4:1 turndown ratio for inverter drives
- Compact with high power to weight ratio
The AHF308 triplex plunger pump is used in numerous pumping applications because it is efficient, reliable and easy to maintain.
- Water jetting
- Hydrostatic testing
- High pressure coolant pumping
- Umbilical flushing & HPU’s
- Hot steel descaling
- Water hydraulic systems
- Surface preparation
- Tube clean
