  • Pressure to 1400 bar and flows up to 156 l/min
  • Choice of 8 different plunger sizes to achieve a range of pressures and flow rates
  • Horizontal or vertical mounting options
  • Tungsten carbide plungers
  • Crankcase with forced lubrication, filtration and oil cooling
  • Simple design with easy maintenance
  • Integral reduction gearbox
  • Fitted with INTELLIVALVE TECHNOLOGY to reduce number of components, reduce maintenance time and increased component lifetime
  • A full range of accessories are available
Enquire Now
Categories: ,

Description

The HPP is a European brand, specialised in the design and construction of high pressure plunger pumps.  They offer products  from 50 to 400kW, with pressures up to 2800 bar.

The pumps are manufactured using the latest modern technologies with regards to both materials used, similarly with machining and mechanical operations, and heat treatments.

Model H-150 SAP is a triplex plunger pump, capable of pressures up to 1400 bar (20,305 psi) and flows to 156 l/min (34.3 UKgpm / 41.2 USgpm). It is available with 3 plunger sizes and 2 gearbox ratios providing pressure and flow combinations to suit many applications.

Drive power can be diesel or electric and the gearbox is integral to the crankcase making the design extremely compact. The crankcase features forced lubrication with oil filtration and cooling, which ensures reliability and long service life.

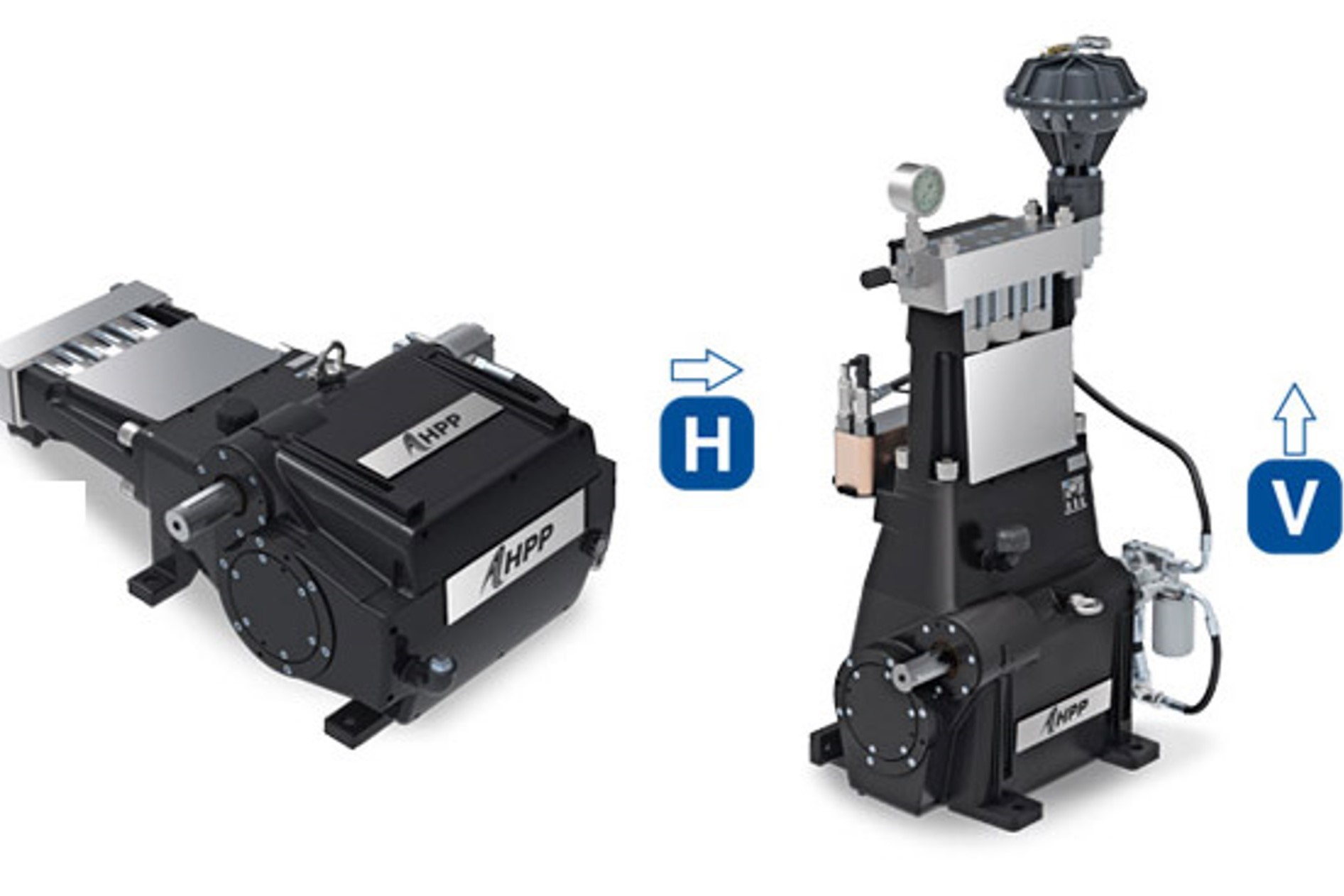

The pump has been designed to allow for vertical or horizontal installation. Different configurations mean the units can therefore take best advantage of the site conditions and space that may be available.



The H-150 SAP pump can be used in numerous pumping applications particularly because it’s efficient, reliable and easy to maintain.

  • Water jetting / surface preparation
  • Hydrostatic testing
  • Heat exchanger cleaning
  • Surface preparation
  • Tube/pipe cleaning



Ø plunger rpm gear ratio pump rpm lpm UKgpm USgpm bar psi HP kW kg
22 1500 2.9 517 47 10.3 12.4 1,400 20,305 164 122 400
1800 3.6 502 46 10.1 12.2 1,400 20,305 160 119 400
24 1500 2.9 517 56 12.3 14.8 1,200 17,405 168 125 400
1800 3.6 502 54 11.9 14.3 1,200 17,405 162 121 400
26 1500 2.9 517 66 14.5 17.4 1,000 14,505 164 122 400
1800 3.6 502 64 14.1 16.9 1,000 14,505 158 118 400
28 1500 2.9 517 76 16.7 20.1 830 12,040 157 117 400
1800 3.6 502 74 16.3 19.6 830 12,040 153 114 400
30 1500 2.9 517 88 19.4 23.2 750 10,880 164 122 400
1800 3.6 502 85 18.7 22.5 750 10,880 158 118 400
32 1500 2.9 517 100 22.0 26.4 640 9,285 158 118 400
1800 3.6 502 97 21.3 25.6 640 9,285 154 115 400
35 1500 2.9 517 119 26.2 31.4 560 8,125 166 124 400
1800 3.6 502 116 25.5 30.6 560 8,125 161 120 400
40 1500 2.9 517 156 34.3 41.2 400 5,800 156 116 400
1800 3.6 502 151 33.2 39.9 400 5,800 150 112 400

Performances refer to theoretical delivery with 100% volumetric efficiency

  • Pressure to 1400 bar and flows up to 156 l/min
  • Choice of 8 different plunger sizes to achieve a range of pressures and flow rates
  • Horizontal or vertical mounting options
  • Tungsten carbide plungers
  • Crankcase with forced lubrication, filtration and oil cooling
  • Simple design with easy maintenance
  • Integral reduction gearbox
  • Fitted with INTELLIVALVE TECHNOLOGY to reduce number of components, reduce maintenance time and increased component lifetime
  • A full range of accessories are available
